AWS CodePipeline Step by Step with .NET Core - Repository の作成
Pipelineの作成に伴いまずはRepositoryが必要となるので、今回はCodeCommitを利用。
AWSTemplateFormatVersion: 2010-09-09 Description: AWS CI/CD - CodeCommit Parameters: RepositoryDescription: Type: String Default: Repository for CI/CD Blog RepositoryName: Type: String Default: ci_cd_blog UserName: Type: String Default: ci_cd_blog_user Resources: Repository: Type: AWS::CodeCommit::Repository Properties: RepositoryDescription: !Ref RepositoryDescription RepositoryName: !Ref RepositoryName User: Type: AWS::IAM::User Properties: Policies: - PolicyName: !Sub ${UserName}_policy PolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Action: - codecommit:GitPull - codecommit:GitPush Resource: !GetAtt Repository.Arn UserName: !Ref UserName Outputs: CiCdBlogRepositoryId: Value: !Ref Repository Export: Name: CiCdBlogRepositoryId CiCdBlogRepositoryArn: Value: !GetAtt Repository.Arn Export: Name: CiCdBlogRepositoryArn CiCdBlogRepositoryCloneUrlHttp: Value: !GetAtt Repository.CloneUrlHttp Export: Name: CiCdBlogRepositoryCloneUrlHttp CiCdBlogRepositoryCloneUrlSsh: Value: !GetAtt Repository.CloneUrlSsh Export: Name: CiCdBlogRepositoryCloneUrlSsh CiCdBlogRepositoryName: Value: !GetAtt Repository.Name Export: Name: CiCdBlogRepositoryName
そこに対してPushするコードは、今回は.NET Core でLambda Templateを使用。
.NET Core をインストール後、LambdaのTemplateをインストールし、Projectを作成
dotnet new serverless.image.AspNetCoreWebAPI -n web
.NET のビルドをLocalでは行わないので、とりあえずコードのみ欲しい場合は下記のTemplateをCloudFormationで流してCodeCommitにコードを投入。コード作成後、不要になる為Stack毎消すことをお勧めします。
AWSTemplateFormatVersion: 2010-09-09 Description: AWS CI/CD - Repository Initialize Parameters: ImageId: Type: AWS::EC2::Image::Id Default: ami-09b23e84684bb7149 Description: ubuntu22.04 InstanceType: Type: String Default: t4g.micro RepositoryName: Type: String Default: ci_cd_blog Resources: Instance: Type: AWS::EC2::Instance Properties: BlockDeviceMappings: - DeviceName: /dev/sda1 Ebs: VolumeType: gp3 DeleteOnTermination: true VolumeSize: 8 CreditSpecification: CPUCredits: standard ImageId: !Ref ImageId IamInstanceProfile: !Ref InstanceProfile InstanceType: !Ref InstanceType SecurityGroupIds: - !Ref SecurityGroup UserData: Fn::Base64: !Sub | #!/bin/bash apt-get update apt-get -y upgrade apt-get install -y git unzip dotnet-sdk-6.0 curl "https://awscli.amazonaws.com/awscli-exe-linux-aarch64.zip" -o "awscliv2.zip" unzip -q awscliv2.zip ./aws/install export HOME=/home/ubuntu dotnet new -i Amazon.Lambda.Templates mkdir $HOME/work && cd $HOME/work dotnet new serverless.image.AspNetCoreWebAPI -n web dotnet new gitignore git config --global user.name ubuntu git config --global user.email ubuntu@example.com git config --global credential.helper '!aws codecommit credential-helper $@' git config --global credential.UseHttpPath true git init -b main git add -A git commit -m "Newly Created" git remote add origin https://git-codecommit.${AWS::Region}.amazonaws.com/v1/repos/${RepositoryName} git push origin main shutdown -h now SecurityGroup: Type: AWS::EC2::SecurityGroup Properties: GroupDescription: ci_cd_blog_sg InstanceProfile: Type: AWS::IAM::InstanceProfile Properties: Roles: - !Ref RoleForInstanceProfile RoleForInstanceProfile: Type: AWS::IAM::Role Properties: AssumeRolePolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Principal: Service: - ec2.amazonaws.com Action: - sts:AssumeRole PolicyForEc2: Type: AWS::IAM::Policy Properties: PolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Action: - codecommit:GitPull - codecommit:GitPush Resource: !Sub arn:${AWS::Partition}:codecommit:${AWS::Region}:${AWS::AccountId}:${RepositoryName} PolicyName: ci_cd_blog_iam_policy Roles: - !Ref RoleForInstanceProfile # Schedule for Stop Ec2 ScheduleGroup: Type: AWS::Scheduler::ScheduleGroup Schedule: Type: AWS::Scheduler::Schedule Properties: FlexibleTimeWindow: Mode: 'OFF' GroupName: !Ref ScheduleGroup ScheduleExpression: cron(00 20 ? * * *) ScheduleExpressionTimezone: Japan State: ENABLED Target: Arn: !Sub arn:${AWS::Partition}:scheduler:::aws-sdk:ec2:stopInstances Input: !Sub - | { "InstanceIds": ["${InstanceId1}"] } - InstanceId1: !Ref Instance RoleArn: !GetAtt RoleForSchedule.Arn RoleForSchedule: Type: AWS::IAM::Role Properties: AssumeRolePolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Principal: Service: - scheduler.amazonaws.com Action: - sts:AssumeRole PolicyForSchedule: Type: AWS::IAM::Policy Properties: PolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Action: - ec2:StopInstances Resource: !Sub arn:${AWS::Partition}:ec2:${AWS::Region}:${AWS::AccountId}:instance/${Instance} PolicyName: ci_cd_blog_iam_policy Roles: - !Ref RoleForSchedule

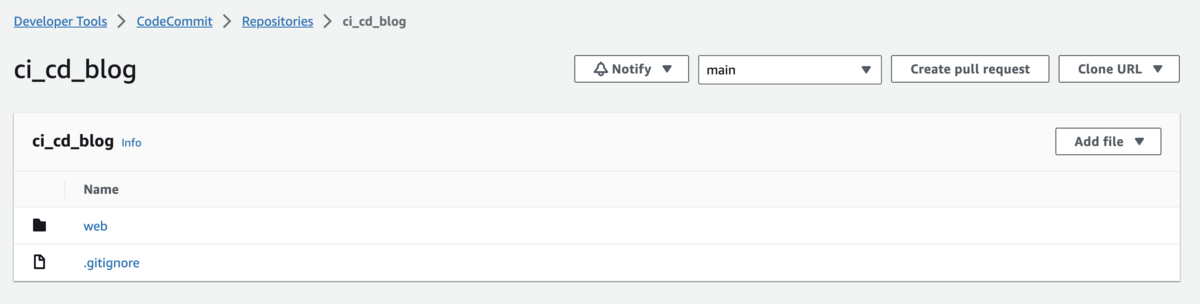

Code Commitにコードが投入されていれば下準備は完了。
AWS CodePipeline Step by Step with .NET Core - 概要
先日知り合いから、送られてきたリンク
AWS CodePipeline supports parameterized pipelines
AWS CodePipeline に新たなType v2が追加されたとのことで、試してみようかと思ったところ案の定CloudFormation Template やCDKが未対応。。。 なので時折Projectでお話が出てくるCodePipeline をおさらい。(その間にCFnやCDKが対応してくれるといい感じで連載できそう)
Pipeline Toolってたくさんあり、GitLab, Bamboo, Travis CI, Tekton, Jenkins, Github Actions, CircleCI等々。これらのToolに慣れてきた人たちにはちょっと使用法が異なるAWS CodePipeline(私が知る限り似たものはAzure Pipelines - Classic)大きく何が違うかといえば
枠組み作成の事前作成有無
ではないかと。
その前にPipelineの概要を説明すると、各製品毎に呼び名は様々また仕様が若干異なるが、Pipeline 自体は大きく分けて4つの要素から構成される。(今回はAzure Pipelineを元にした)
要素 | 説明 | 例 | 事前作成 |
---|---|---|---|
Pipeline | Frameであり、ここにはPipelineの実行タイミングや、使用する定数等を定義する。 | 毎日23時に起動等 | ○ |
Stage | Frame。後述するJobを論理的に分割する役割し、Stage間の流れを定義。 | Build StageとDeploy Stageの場合、Build Stageが成功した後、Deploy Stageを実行。もちろん1StageでBuildとDeployを包括することも可能。 | ○ |
Job | これもFrame。後述するStepをまとめる役割を持つ。製品によってはこの単位で再実行が並列処理が可能だったりする。 | 複数ContaierをBuildする際、Build for C1, Build for C2, Build for C3 | - |
Step | 実際の処理を定義。 | Build Jobの中には、GitからのPull、PackageのRestore、Buildといった具合に処理を記述。 | - |
AWS CodePipeline や Azure Pipelines - Classic ではPipeline定義時に上記の事前作成が○の項目を用意しておく必要がある。後述する定義ファイル内への記述は不可。一方で他製品、Github Actionsではそれらの事前定義は不要であり、定義ファイルに全てを記述する事ができる。即ち、開発者目線で言えば、前者は一部のみ変更の余地があるが、後者は全て変更できるという事になる。(個人的には後者の方が好み。ただ状況によっては後者の方が適する場合もあるのでは?コンプライアンス的な。。。)
で、話をAWSに戻すと下記のように製品とのマッピングとなる。
要素 | AWS |
---|---|
Pipeline | Code Pipeline |
Stage | Code Pipeline |
Job | Code Pipeline & Code Build & Code Deploy |
Step | (Code Pipeline) & Code Build & Code Deploy |
JobとStepについてはカオスが他のAWS Serviceとの連携は抜群である。正直最初にCodePipelineに触れた時、全く理解できなかった私(今よりも設定が少ない時に)。次回からはストーリーを作って最終的にLambdaあたりをDeployするものを作れたらと考えてます。
